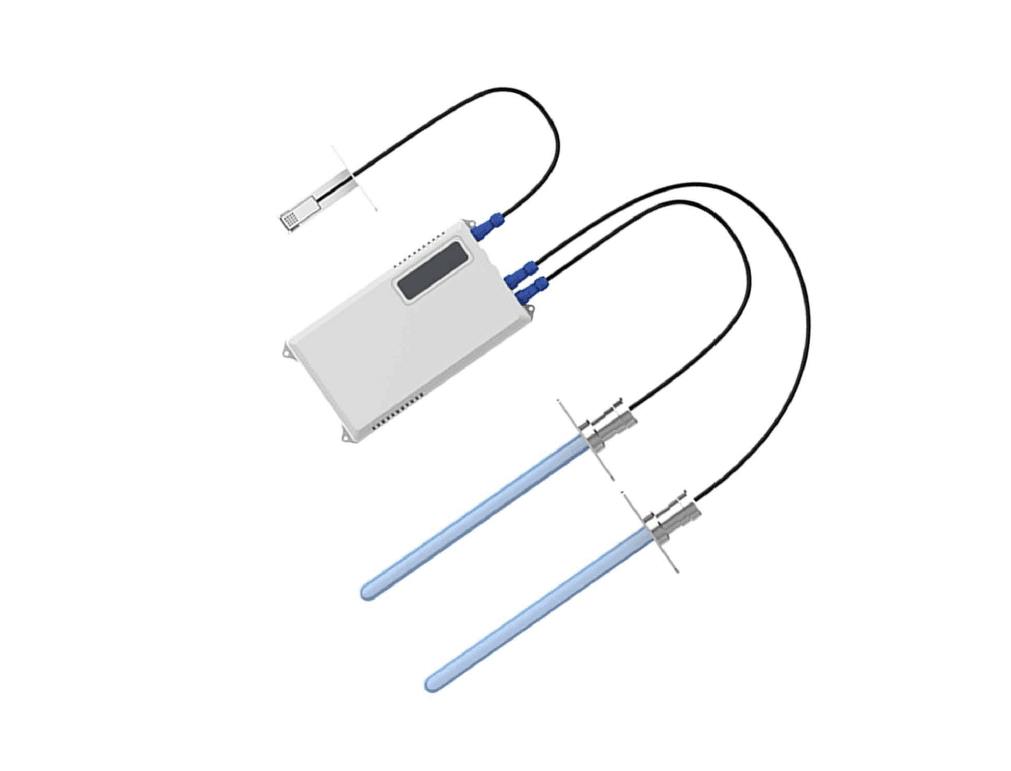

DUCT Germicidal UVC Lamp
AT150HS-90W
Same as our AT150HS-35W but larger output.
Design & build - contact for more information
90W High Power
90W High Power

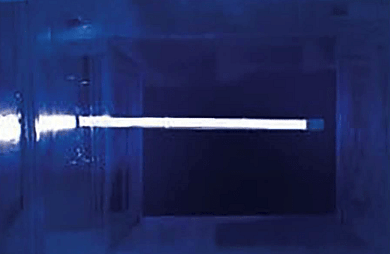

AT150HS-90D can be easily installed in your central air system. It is a safe, economical and effective way to improve indoor air quality by significantly reducing airborne contaminants.
253.7nm Wavelength
253.7nm UVC wavelength has been proven to be very effective to destroy and reduce virus and germs both on surface and in air.
Energy Savings
Special Air Flow Sensor
Unlike regular UV lamps that are always on, the airflow sensor enables this UV lamp to only turn on when HVAC system is running. This saves energy and extends life of the duct.
Smart Monitor
Smart display
Displays working hours of the lamp
Lamp work failure alarm
Alarm when lamp lifespans expires
Long Lifetime
12000 hours
External Alarm LED Indicator
Keep air as clean as possible.
When central box is placed inside the ceiling and display screen cannot be seen, an LED indicator light is installed on the outside ceiling to indicate the UVC lamp working status for quick maintenance.
| Product Name | DUCT Germicidal UV-C Lamp |
|---|---|
| Model No | AT150HS-90W |
| Rated Power | 90W |
| Input Voltage | 90–264Vac |
| Lifespan | 12,000H |
| UV Maintenance Rate | 100–8000H: ~80% |
| Wavelength | 253.7nm |
| UV Optical (1 Meter) | 350μw/cm² |
| Antibacterial Rate | 90%–100% |
| Tube Quantity | 2pcs |
| Tube Material | Quartz |
| Warranty | 1 Year |
| Housing | Aluminum alloy & PC |
| Lamp Size | D:450mm × 23mm |
| Controller Box Size | 250 × 150 × 50mm |
| Package Size | 630 × 350 × 105mm |
