DUCT Germicidal UVC Lamp
AT30D
Designed for:
Induct placement
Produces negative ions
30W High Power

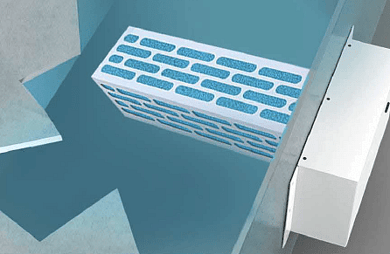

Designed for HVAC Duct
PCO
Controlling Air Quality
The titanium dioxide catalyst is activated by UV light which neutralises biological contaminates such as bacteria, viruses, mould & fungi.
Energy Savings
Unlike regular UV ducting systems that works all the time, our airflow sensor turns AT30D on only when the HVAC is operating, which is energy saving and extends the lifespan of the tubes.
Smart Monitor
Smart display to remind about replacing lamps
When the lamp has been working for 8000 hours, the numbers on screen will flash to remind you to replace lamps.
Long Lifetime
8000 hours
Kill 99% of Pathogens
Keep air as clean as possible.
| Product Name | DUCT Germicidal UV-C Lamp |
|---|---|
| Model No | AT30D |
| Rated Power | 30W |
| Input Voltage | 90–264Vac |
| Lifespan | 9,000H |
| UV Maintenance Rate | 100–8000H: ~80% |
| Wavelength | 253.7nm |
| UV Optical Power (10cm) | 150μw/cm² |
| Antibacterial Rate | 90%–100% |
| Tube Quantity | 1pcs |
| Tube Material | Quartz |
| Warranty | 1 Year |
| Housing | Zinc Plated Stainless Steel |
| Product Size | 355 × 270 × 115mm |
| Package Size | 445 × 315 × 195mm |
