DUCT Germicidal UVC Lamp
AT500
Designed for:

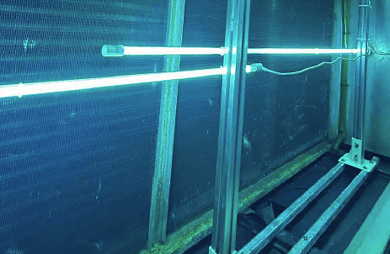

Large commercial HVAC systems
Packaged units
Large coils
Design & Build - contact for more information
High Power Lamp
150 to 3600W Full Power Support
AT500 series can be easily installed in your central air system. It is a safe, economical and effective way to improve indoor air quality by significantly reducing airborne contaminants.
253.7nm Wavelength
253.7nm UVC wavelength has been proven to be very effective to destroy and reduce virus and germs both on surface and in air.
Energy Savings
Special Air Flow Sensor
Unlike regular UV lamps that are always on, the airflow sensor enables this UV lamp to only turn on when HVAC system is running. This saves energy and extends life of the duct.
Smart Monitor
Smart Display
Display actual working hours of the lamp
Lamp work failure alarm
Alarm when lamp lifespan expires
Reset lamp life after replacing new lamp
Long Lifetime
8000 hours

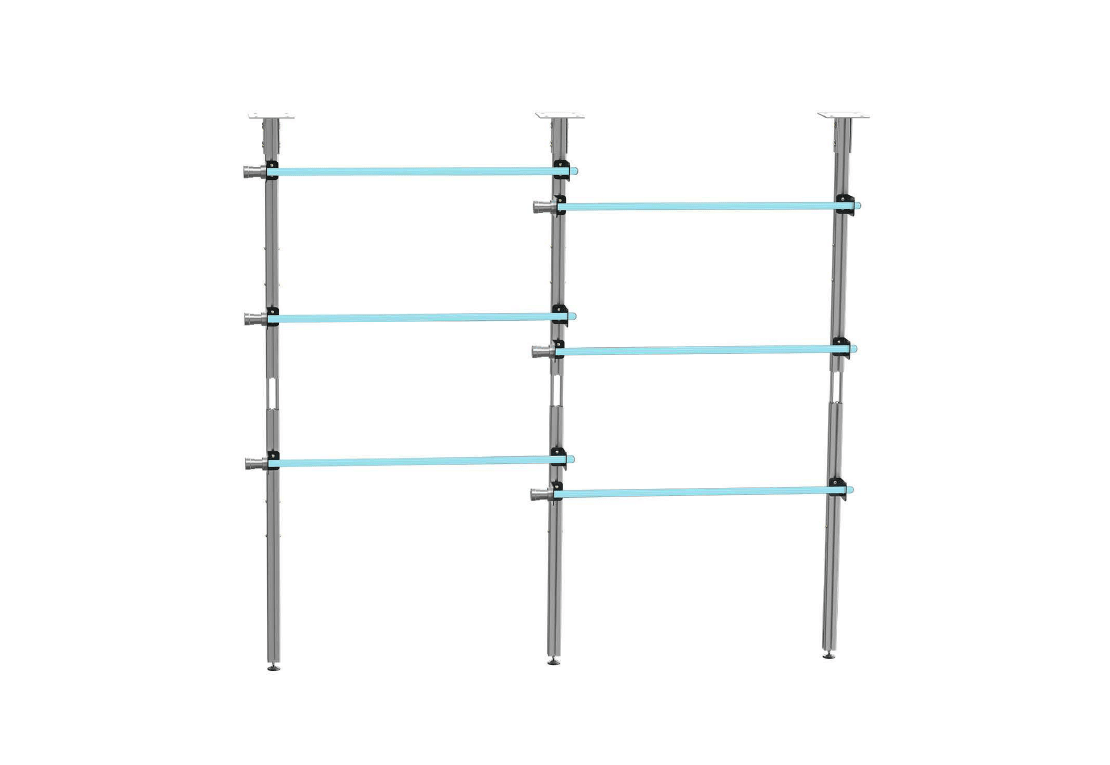

H-shape is adjustable
With arbitrary length and width adjustment
Length can be adjusted from 1-3.5meters.
Height can be adjusted from 1.6meters.
Customisation can also be supported.
| Product Name | DUCT Germicidal UV-C Lamp |
|---|---|
| Model No | AT500 |
| Rated Power | 150–3600W |
| Input Voltage | 90–264Vac |
| Lifespan | 12,000H |
| UV Maintenance Rate | 100–8000H: ~80% |
| Wavelength | 253.7nm |
| UV Optical (1 Meter) | 350–1500μw/cm² |
| Antibacterial Rate | 90%–100% |
| Tube Quantity | 1–24pcs |
| Tube Material | Quartz |
| Warranty | 1 Year |
| Housing | Aluminum alloy & PC |
| Lamp Size | D:(650–1610) × 23mm |
| Controller Box Size | 500 × 400 × 120mm |
| Package Size | N/A |
