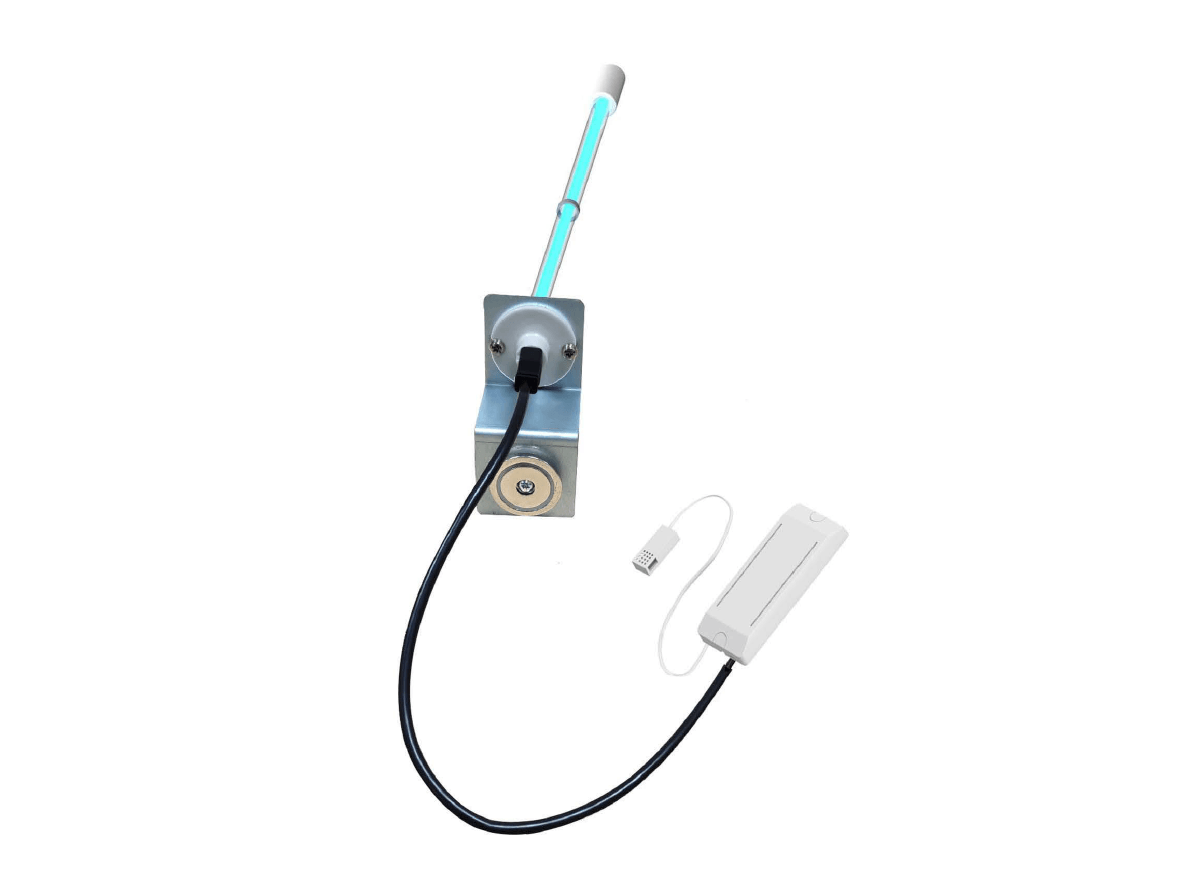

DUCT Germicidal UVC Lamp
AT30C
Designed for:
Ducted systems
Induct design & build
High Power Lamp
24W High Power
Designed for commercial HVAC.
253.7nm Wavelength
253.7nm UVC wavelength has been proven to be very effective to destroy and reduce virus and germs both on surface and in air.
Energy Saving
Special Air Flow Sensor
Unlike regular UV lamps that are always on, the airflow sensor enables this UV lamp to only turn on when the HVAC system is running, which saves energy and helps extend life of the duct.
Magnetic Z - Bracket
For flexible, quick & easy installation
Long Lifetime
8000 hours
Kill 99% of Pathogens
Keep air as clean as possible.
| Product Name | DUCT Germicidal UV-C Lamp |
|---|---|
| Model No | AT30C |
| Rated Power | 24W |
| Input Voltage | 90–264Vac |
| Lifespan | 8,000H |
| UV Maintenance Rate | 100–8000H: ~80% |
| Wavelength | 253.7nm |
| UV Optical (1 Meter) | 75μw/cm² |
| Antibacterial Rate | 90%–100% |
| Tube Quantity | 1pcs |
| Tube Material | Quartz |
| Warranty | 1 Year |
| Housing | Aluminum alloy & PC |
| Lamp Size | D:436mm × 15mm |
| Package Size | 590 × 170 × 90mm |
